How to: Preserve the Aspect Ratio of an Image Used as a Background
This example shows how to use the xref:System.Windows.Media.TileBrush.Stretch%2A property of an xref:System.Windows.Media.ImageBrush in order to preserve the aspect ratio of the image.
By default, when you use an xref:System.Windows.Media.ImageBrush to paint an area, its content stretches to completely fill the output area. When the output area and the image have different aspect ratios, the image is distorted by this stretching.
To make an xref:System.Windows.Media.ImageBrush preserve the aspect ratio of its image, set the xref:System.Windows.Media.TileBrush.Stretch%2A property to xref:System.Windows.Media.Stretch.Uniform or xref:System.Windows.Media.Stretch.UniformToFill.
Example
The following example uses two xref:System.Windows.Media.ImageBrush objects to paint two rectangles. Each rectangle is 300 by 150 pixels and each contains a 300 by 300 pixel image. The xref:System.Windows.Media.TileBrush.Stretch%2A property of the first brush is set to xref:System.Windows.Media.Stretch.Uniform, and the xref:System.Windows.Media.TileBrush.Stretch%2A property of the second brush is set to xref:System.Windows.Media.Stretch.UniformToFill.
[!code-csharpUsingImageBrush_snip#ImageBrushStretchModesExampleWholePage]

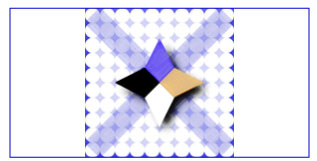

The following illustration shows the output of the first brush, which has a xref:System.Windows.Media.TileBrush.Stretch%2A setting of xref:System.Windows.Media.Stretch.Uniform.
The next illustration shows the output of the second brush, which has a xref:System.Windows.Media.TileBrush.Stretch%2A setting of xref:System.Windows.Media.Stretch.UniformToFill.
Note that the xref:System.Windows.Media.TileBrush.Stretch%2A property behaves identically for the other xref:System.Windows.Media.TileBrush objects, that is, for xref:System.Windows.Media.DrawingBrush and xref:System.Windows.Media.VisualBrush. For more information about xref:System.Windows.Media.ImageBrush and the other xref:System.Windows.Media.TileBrush objects, see Painting with Images, Drawings, and Visuals.
Note also that, although the xref:System.Windows.Media.TileBrush.Stretch%2A property appears to specify how the xref:System.Windows.Media.TileBrush content stretches to fit its output area, it actually specifies how the xref:System.Windows.Media.TileBrush content stretches to fill its base tile. For more information, see xref:System.Windows.Media.TileBrush.
This code example is part of a larger example that is provided for the xref:System.Windows.Media.ImageBrush class. For the complete sample, see ImageBrush Sample.
