Navigation Overview

Windows Presentation Foundation (WPF) supports browser-style navigation that can be used in two types of applications: standalone applications and XAML browser applications (XBAPs). To package content for navigation, WPF provides the xref:System.Windows.Controls.Page class. You can navigate from one xref:System.Windows.Controls.Page to another declaratively, by using a xref:System.Windows.Documents.Hyperlink, or programmatically, by using the xref:System.Windows.Navigation.NavigationService. WPF uses the journal to remember pages that have been navigated from and to navigate back to them.

xref:System.Windows.Controls.Page, xref:System.Windows.Documents.Hyperlink, xref:System.Windows.Navigation.NavigationService, and the journal form the core of the navigation support offered by WPF. This overview explores these features in detail before covering advanced navigation support that includes navigation to loose [!INCLUDETLA#tla_xaml] files, HTML files, and objects.

Note

In this topic, the term "browser" refers only to browsers that can host WPF applications, which currently includes Microsoft Internet Explorer and Firefox. Where specific WPF features are supported only by a particular browser, the browser version is referred to.

Navigation in WPF Applications

This topic provides an overview of the key navigation capabilities in WPF. These capabilities are available to both standalone applications and XBAPs, although this topic presents them within the context of an XBAP.

Note

This topic doesn't discuss how to build and deploy XBAPs. For more information on XBAPs, see WPF XAML Browser Applications Overview.

This section explains and demonstrates the following aspects of navigation:

Implementing a Page

In WPF, you can navigate to several content types that include .NET Framework objects, custom objects, enumeration values, user controls, [!INCLUDETLA2#tla_xaml] files, and HTML files. However, you'll find that the most common and convenient way to package content is by using xref:System.Windows.Controls.Page. Furthermore, xref:System.Windows.Controls.Page implements navigation-specific features to enhance their appearance and simplify development.

Using xref:System.Windows.Controls.Page, you can declaratively implement a navigable page of [!INCLUDETLA2#tla_xaml] content by using markup like the following.

[!code-xamlNavigationOverviewSnippets#Page1XAML]

A xref:System.Windows.Controls.Page that is implemented in [!INCLUDETLA2#tla_xaml] markup has Page as its root element and requires the WPF XML namespace declaration. The Page element contains the content that you want to navigate to and display. You add content by setting the Page.Content property element, as shown in the following markup.

[!code-xamlNavigationOverviewSnippets#Page2XAML]

Page.Content can only contain one child element; in the preceding example, the content is a single string, "Hello, Page!" In practice, you will usually use a layout control as the child element (see Layout) to contain and compose your content.

The child elements of a Page element are considered to be the content of a xref:System.Windows.Controls.Page and, consequently, you don't need to use the explicit Page.Content declaration. The following markup is the declarative equivalent to the preceding sample.

[!code-xamlNavigationOverviewSnippets#Page3XAML]

In this case, Page.Content is automatically set with the child elements of the Page element. For more information, see WPF Content Model.

A markup-only xref:System.Windows.Controls.Page is useful for displaying content. However, a xref:System.Windows.Controls.Page can also display controls that allow users to interact with the page, and it can respond to user interaction by handling events and calling application logic. An interactive xref:System.Windows.Controls.Page is implemented by using a combination of markup and code-behind, as shown in the following example.

[!code-xamlXBAPAppDefSnippets#HomePageMARKUP]

[!code-csharpXBAPAppDefSnippets#HomePageCODEBEHIND] [!code-vbXBAPAppDefSnippets#HomePageCODEBEHIND]

To allow a markup file and code-behind file to work together, the following configuration is required:

  • In markup, the Page element must include the x:Class attribute. When the application is built, the existence of x:Class in the markup file causes Microsoft build engine (MSBuild) to create a partial class that derives from xref:System.Windows.Controls.Page and has the name that is specified by the x:Class attribute. This requires the addition of an XML namespace declaration for the [!INCLUDETLA2#tla_xaml] schema ( xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" ). The generated partial class implements InitializeComponent, which is called to register the events and set the properties that are implemented in markup.

  • In code-behind, the class must be a partial class with the same name that is specified by the x:Class attribute in markup, and it must derive from xref:System.Windows.Controls.Page. This allows the code-behind file to be associated with the partial class that is generated for the markup file when the application is built (see Building a WPF Application).

  • In code-behind, the xref:System.Windows.Controls.Page class must implement a constructor that calls the InitializeComponent method. InitializeComponent is implemented by the markup file's generated partial class to register events and set properties that are defined in markup.

Note

When you add a new xref:System.Windows.Controls.Page to your project using Visual Studio, the xref:System.Windows.Controls.Page is implemented using both markup and code-behind, and it includes the necessary configuration to create the association between the markup and code-behind files as described here.

Once you have a xref:System.Windows.Controls.Page, you can navigate to it. To specify the first xref:System.Windows.Controls.Page that an application navigates to, you need to configure the start xref:System.Windows.Controls.Page.

Configuring a Start Page

XBAPs require a certain amount of application infrastructure to be hosted in a browser. In WPF, the xref:System.Windows.Application class is part of an application definition that establishes the required application infrastructure (see Application Management Overview).

An application definition is usually implemented using both markup and code-behind, with the markup file configured as an MSBuildApplicationDefinition item. The following is an application definition for an XBAP.

[!code-xamlXBAPAppDefSnippets#XBAPApplicationDefinitionMARKUP]

[!code-csharpXBAPAppDefSnippets#XBAPApplicationDefinitionCODEBEHIND] [!code-vbXBAPAppDefSnippets#XBAPApplicationDefinitionCODEBEHIND]

An XBAP can use its application definition to specify a start xref:System.Windows.Controls.Page, which is the xref:System.Windows.Controls.Page that is automatically loaded when the XBAP is launched. You do this by setting the xref:System.Windows.Application.StartupUri%2A property with the uniform resource identifier (URI) for the desired xref:System.Windows.Controls.Page.

Note

In most cases, the xref:System.Windows.Controls.Page is either compiled into or deployed with an application. In these cases, the URI that identifies a xref:System.Windows.Controls.Page is a pack URI, which is a URI that conforms to the pack scheme. Pack URIs are discussed further in Pack URIs in WPF. You can also navigate to content using the http scheme, which is discussed below.

You can set xref:System.Windows.Application.StartupUri%2A declaratively in markup, as shown in the following example.

[!code-xamlNavigationOverviewSnippets#XBAPApplicationDefinitionMARKUP]

In this example, the StartupUri attribute is set with a relative pack URI that identifies HomePage.xaml. When the XBAP is launched, HomePage.xaml is automatically navigated to and displayed. This is demonstrated by the following figure, which shows an XBAP that was launched from a Web server.

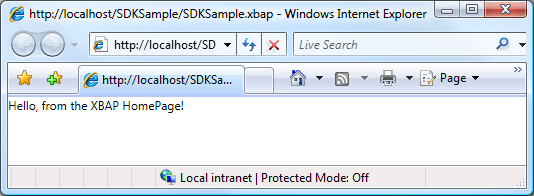

XBAP page

Note

For more information regarding the development and deployment of XBAPs, see WPF XAML Browser Applications Overview and Deploying a WPF Application.

Configuring the Host Window's Title, Width, and Height

One thing you may have noticed from the previous figure is that the title of both the browser and the tab panel is the URI for the XBAP. Besides being long, the title is neither attractive nor informative. For this reason, xref:System.Windows.Controls.Page offers a way for you to change the title by setting the xref:System.Windows.Controls.Page.WindowTitle%2A property. Furthermore, you can configure the width and height of the browser window by setting xref:System.Windows.Controls.Page.WindowWidth%2A and xref:System.Windows.Controls.Page.WindowHeight%2A, respectively.

xref:System.Windows.Controls.Page.WindowTitle%2A, xref:System.Windows.Controls.Page.WindowWidth%2A, and xref:System.Windows.Controls.Page.WindowHeight%2A can be set declaratively in markup, as shown in the following example.

[!code-xamlNavigationOverviewSnippets#HomePageMARKUP]

The result is shown in the following figure.

Window title, height, width

Hyperlink Navigation

A typical XBAP comprises several pages. The simplest way to navigate from one page to another is to use a xref:System.Windows.Documents.Hyperlink. You can declaratively add a xref:System.Windows.Documents.Hyperlink to a xref:System.Windows.Controls.Page by using the Hyperlink element, which is shown in the following markup.

[!code-xamlNavigationOverviewSnippets#HyperlinkXAML1] [!code-xamlNavigationOverviewSnippets#HyperlinkXAML2] [!code-xamlNavigationOverviewSnippets#HyperlinkXAML3]

A Hyperlink element requires the following:

The following figure shows an XBAP with a xref:System.Windows.Controls.Page that has a xref:System.Windows.Documents.Hyperlink.

Page with Hyperlink

As you would expect, clicking the xref:System.Windows.Documents.Hyperlink causes the XBAP to navigate to the xref:System.Windows.Controls.Page that is identified by the NavigateUri attribute. Additionally, the XBAP adds an entry for the previous xref:System.Windows.Controls.Page to the Recent Pages list in Internet Explorer. This is shown in the following figure.

Back and Forward buttons

As well as supporting navigation from one xref:System.Windows.Controls.Page to another, xref:System.Windows.Documents.Hyperlink also supports fragment navigation.

Fragment Navigation

Fragment navigation is the navigation to a content fragment in either the current xref:System.Windows.Controls.Page or another xref:System.Windows.Controls.Page. In WPF, a content fragment is the content that is contained by a named element. A named element is an element that has its Name attribute set. The following markup shows a named TextBlock element that contains a content fragment.

[!code-xamlNavigationOverviewSnippets#PageWithContentFragmentsMARKUP1] [!code-xamlNavigationOverviewSnippets#PageWithContentFragmentsMARKUP2] [!code-xamlNavigationOverviewSnippets#PageWithContentFragmentsMARKUP3]

For a xref:System.Windows.Documents.Hyperlink to navigate to a content fragment, the NavigateUri attribute must include the following:

A fragment URI has the following format.

PageURI # ElementName

The following shows an example of a Hyperlink that is configured to navigate to a content fragment.

[!code-xamlNavigationOverviewSnippets#PageThatNavigatesXAML1] [!code-xamlNavigationOverviewSnippets#PageThatNavigatesXAML2] [!code-xamlNavigationOverviewSnippets#PageThatNavigatesXAML3]

Note

This section describes the default fragment navigation implementation in WPF. WPF also allows you to implement your own fragment navigation scheme which, in part, requires handling the xref:System.Windows.Navigation.NavigationService.FragmentNavigation?displayProperty=nameWithType event.

Important

You can navigate to fragments in loose [!INCLUDETLA2#tla_xaml] pages (markup-only [!INCLUDETLA2#tla_xaml] files with Page as the root element) only if the pages can be browsed via HTTP.

However, a loose [!INCLUDETLA2#tla_xaml] page can navigate to its own fragments.

Navigation Service

While xref:System.Windows.Documents.Hyperlink allows a user to initiate navigation to a particular xref:System.Windows.Controls.Page, the work of locating and downloading the page is performed by the xref:System.Windows.Navigation.NavigationService class. Essentially, xref:System.Windows.Navigation.NavigationService provides the ability to process a navigation request on behalf of client code, such as the xref:System.Windows.Documents.Hyperlink. Additionally, xref:System.Windows.Navigation.NavigationService implements higher-level support for tracking and influencing a navigation request.

When a xref:System.Windows.Documents.Hyperlink is clicked, WPF calls xref:System.Windows.Navigation.NavigationService.Navigate%2A?displayProperty=nameWithType to locate and download the xref:System.Windows.Controls.Page at the specified pack URI. The downloaded xref:System.Windows.Controls.Page is converted to a tree of objects whose root object is an instance of the downloaded xref:System.Windows.Controls.Page. A reference to the root xref:System.Windows.Controls.Page object is stored in the xref:System.Windows.Navigation.NavigationService.Content%2A?displayProperty=nameWithType property. The pack URI for the content that was navigated to is stored in the xref:System.Windows.Navigation.NavigationService.Source%2A?displayProperty=nameWithType property, while the xref:System.Windows.Navigation.NavigationService.CurrentSource%2A?displayProperty=nameWithType stores the pack URI for the last page that was navigated to.

Note

It is possible for a WPF application to have more than one currently active xref:System.Windows.Navigation.NavigationService. For more information, see Navigation Hosts later in this topic.

Programmatic Navigation with the Navigation Service

You don't need to know about xref:System.Windows.Navigation.NavigationService if navigation is implemented declaratively in markup using xref:System.Windows.Documents.Hyperlink, because xref:System.Windows.Documents.Hyperlink uses the xref:System.Windows.Navigation.NavigationService on your behalf. This means that, as long as either the direct or indirect parent of a xref:System.Windows.Documents.Hyperlink is a navigation host (see Navigation Hosts), xref:System.Windows.Documents.Hyperlink will be able to find and use the navigation host's navigation service to process a navigation request.

However, there are situations when you need to use xref:System.Windows.Navigation.NavigationService directly, including the following:

In these situations, you need to write code to programmatically initiate navigation by calling the xref:System.Windows.Navigation.NavigationService.Navigate%2A method of the xref:System.Windows.Navigation.NavigationService object. That requires getting a reference to a xref:System.Windows.Navigation.NavigationService.

Getting a Reference to the NavigationService

For reasons that are covered in the Navigation Hosts section, a WPF application can have more than one xref:System.Windows.Navigation.NavigationService. This means that your code needs a way to find a xref:System.Windows.Navigation.NavigationService, which is usually the xref:System.Windows.Navigation.NavigationService that navigated to the current xref:System.Windows.Controls.Page. You can get a reference to a xref:System.Windows.Navigation.NavigationService by calling the staticxref:System.Windows.Navigation.NavigationService.GetNavigationService%2A?displayProperty=nameWithType method. To get the xref:System.Windows.Navigation.NavigationService that navigated to a particular xref:System.Windows.Controls.Page, you pass a reference to the xref:System.Windows.Controls.Page as the argument of the xref:System.Windows.Navigation.NavigationService.GetNavigationService%2A method. The following code shows how to get the xref:System.Windows.Navigation.NavigationService for the current xref:System.Windows.Controls.Page.

[!code-csharpNavigationOverviewSnippets#GetNSCODEBEHIND1] [!code-csharpNavigationOverviewSnippets#GetNSCODEBEHIND2] [!code-vbNavigationOverviewSnippets#GetNSCODEBEHIND2]

As a shortcut for finding the xref:System.Windows.Navigation.NavigationService for a xref:System.Windows.Controls.Page, xref:System.Windows.Controls.Page implements the xref:System.Windows.Controls.Page.NavigationService%2A property. This is shown in the following example.

[!code-csharpNavigationOverviewSnippets#GetNSShortcutCODEBEHIND1] [!code-csharpNavigationOverviewSnippets#GetNSShortcutCODEBEHIND2] [!code-vbNavigationOverviewSnippets#GetNSShortcutCODEBEHIND2]

Note

A xref:System.Windows.Controls.Page can only get a reference to its xref:System.Windows.Navigation.NavigationService when xref:System.Windows.Controls.Page raises the xref:System.Windows.FrameworkElement.Loaded event.

Programmatic Navigation to a Page Object

The following example shows how to use the xref:System.Windows.Navigation.NavigationService to programmatically navigate to a xref:System.Windows.Controls.Page. Programmatic navigation is required because the xref:System.Windows.Controls.Page that is being navigated to can only be instantiated using a single, non-parameterless constructor. The xref:System.Windows.Controls.Page with the non-parameterless constructor is shown in the following markup and code.

[!code-xamlNavigationOverviewSnippets#PageWithNonDefaultConstructorXAML]

[!code-csharpNavigationOverviewSnippets#PageWithNonDefaultConstructorCODEBEHIND] [!code-vbNavigationOverviewSnippets#PageWithNonDefaultConstructorCODEBEHIND]

The xref:System.Windows.Controls.Page that navigates to the xref:System.Windows.Controls.Page with the non-parameterless constructor is shown in the following markup and code.

[!code-xamlNavigationOverviewSnippets#NSNavigationPageXAML]

[!code-csharpNavigationOverviewSnippets#NSNavigationPageCODEBEHIND] [!code-vbNavigationOverviewSnippets#NSNavigationPageCODEBEHIND]

When the xref:System.Windows.Documents.Hyperlink on this xref:System.Windows.Controls.Page is clicked, navigation is initiated by instantiating the xref:System.Windows.Controls.Page to navigate to using the non-parameterless constructor and calling the xref:System.Windows.Navigation.NavigationService.Navigate%2A?displayProperty=nameWithType method. xref:System.Windows.Navigation.NavigationService.Navigate%2A accepts a reference to the object that the xref:System.Windows.Navigation.NavigationService will navigate to, rather than a pack URI.

Programmatic Navigation with a Pack URI

If you need to construct a pack URI programmatically (when you can only determine the pack URI at run time, for example), you can use the xref:System.Windows.Navigation.NavigationService.Navigate%2A?displayProperty=nameWithType method. This is shown in the following example.

[!code-xamlNavigationOverviewSnippets#NSUriNavigationPageXAML]

[!code-csharpNavigationOverviewSnippets#NSUriNavigationPageCODEBEHIND] [!code-vbNavigationOverviewSnippets#NSUriNavigationPageCODEBEHIND]

Refreshing the Current Page

A xref:System.Windows.Controls.Page is not downloaded if it has the same pack URI as the pack URI that is stored in the xref:System.Windows.Navigation.NavigationService.Source%2A?displayProperty=nameWithType property. To force WPF to download the current page again, you can call the xref:System.Windows.Navigation.NavigationService.Refresh%2A?displayProperty=nameWithType method, as shown in the following example.

[!code-xamlNavigationOverviewSnippets#NSRefreshNavigationPageXAML1]

[!code-csharpNavigationOverviewSnippets#NSRefreshNavigationPageCODEBEHIND1] [!code-vbNavigationOverviewSnippets#NSRefreshNavigationPageCODEBEHIND1] [!code-csharpNavigationOverviewSnippets#NSRefreshNavigationPageCODEBEHIND2] [!code-vbNavigationOverviewSnippets#NSRefreshNavigationPageCODEBEHIND2]

Navigation Lifetime

There are many ways to initiate navigation, as you've seen. When navigation is initiated, and while navigation is in progress, you can track and influence the navigation using the following events that are implemented by xref:System.Windows.Navigation.NavigationService:

The navigation events are raised in the order that is illustrated by the following figure.

Page navigation flow chart

In general, a xref:System.Windows.Controls.Page isn't concerned about these events. It is more likely that an application is concerned with them and, for that reason, these events are also raised by the xref:System.Windows.Application class:

Every time xref:System.Windows.Navigation.NavigationService raises an event, the xref:System.Windows.Application class raises the corresponding event. xref:System.Windows.Controls.Frame and xref:System.Windows.Navigation.NavigationWindow offer the same events to detect navigation within their respective scopes.

In some cases, a xref:System.Windows.Controls.Page might be interested in these events. For example, a xref:System.Windows.Controls.Page might handle the xref:System.Windows.Navigation.NavigationService.Navigating?displayProperty=nameWithType event to determine whether or not to cancel navigation away from itself. This is shown in the following example.

[!code-xamlNavigationOverviewSnippets#CancelNavigationPageXAML]

[!code-csharpNavigationOverviewSnippets#CancelNavigationPageCODEBEHIND] [!code-vbNavigationOverviewSnippets#CancelNavigationPageCODEBEHIND]

If you register a handler with a navigation event from a xref:System.Windows.Controls.Page, as the preceding example does, you must also unregister the event handler. If you don't, there may be side effects with respect to how WPF navigation remembers xref:System.Windows.Controls.Page navigation using the journal.

Remembering Navigation with the Journal

WPF uses two stacks to remember the pages that you have navigated from: a back stack and a forward stack. When you navigate from the current xref:System.Windows.Controls.Page to a new xref:System.Windows.Controls.Page or forward to an existing xref:System.Windows.Controls.Page, the current xref:System.Windows.Controls.Page is added to the back stack. When you navigate from the current xref:System.Windows.Controls.Page back to the previous xref:System.Windows.Controls.Page, the current xref:System.Windows.Controls.Page is added to the forward stack. The back stack, the forward stack, and the functionality to manage them, are collectively referred to as the journal. Each item in the back stack and the forward stack is an instance of the xref:System.Windows.Navigation.JournalEntry class, and is referred to as a journal entry.

Navigating the Journal from Internet Explorer

Conceptually, the journal operates the same way that the Back and Forward buttons in Internet Explorer do. These are shown in the following figure.

Back and Forward buttons

For XBAPs that are hosted by Internet Explorer, WPF integrates the journal into the navigation [!INCLUDETLA2#tla_ui] of Internet Explorer. This allows users to navigate pages in an XBAP by using the Back, Forward, and Recent Pages buttons in Internet Explorer.

Important

In Internet Explorer, when a user navigates away from and back to an XBAP, only the journal entries for pages that were not kept alive are retained in the journal. For discussion on keeping pages alive, see Page Lifetime and the Journal later in this topic.

By default, the text for each xref:System.Windows.Controls.Page that appears in the Recent Pages list of Internet Explorer is the URI for the xref:System.Windows.Controls.Page. In many cases, this is not particularly meaningful to the user. Fortunately, you can change the text using one the following options:

  1. The attached JournalEntry.Name attribute value.

  2. The Page.Title attribute value.

  3. The Page.WindowTitle attribute value and the URI for the current xref:System.Windows.Controls.Page.

  4. The URI for the current xref:System.Windows.Controls.Page. (Default)

The order in which the options are listed matches the order of precedence for finding the text. For example, if JournalEntry.Name is set, the other values are ignored.

The following example uses the Page.Title attribute to change the text that appears for a journal entry.

[!code-xamlNavigationOverviewSnippets#PageTitleMARKUP1] [!code-xamlNavigationOverviewSnippets#PageTitleMARKUP2]

[!code-csharpNavigationOverviewSnippets#PageTitleCODEBEHIND1] [!code-vbNavigationOverviewSnippets#PageTitleCODEBEHIND1] [!code-csharpNavigationOverviewSnippets#PageTitleCODEBEHIND2] [!code-vbNavigationOverviewSnippets#PageTitleCODEBEHIND2]

Navigating the Journal Using WPF

Although a user can navigate the journal by using the Back, Forward, and Recent Pages in Internet Explorer, you can also navigate the journal using both declarative and programmatic mechanisms provided by WPF. One reason to do this is to provide custom navigation UIs in your pages.

You can declaratively add journal navigation support by using the navigation commands exposed by xref:System.Windows.Input.NavigationCommands. The following example demonstrates how to use the BrowseBack navigation command.

[!code-xamlNavigationOverviewSnippets#NavigationCommandsPageXAML1] [!code-xamlNavigationOverviewSnippets#NavigationCommandsPageXAML2] [!code-xamlNavigationOverviewSnippets#NavigationCommandsPageXAML3] [!code-xamlNavigationOverviewSnippets#NavigationCommandsPageXAML4]

You can programmatically navigate the journal by using one of the following members of the xref:System.Windows.Navigation.NavigationService class:

The journal can also be manipulated programmatically, as discussed in Retaining Content State with Navigation History later in this topic.

Page Lifetime and the Journal

Consider an XBAP with several pages that contain rich content, including graphics, animations, and media. The memory footprint for pages like these could be quite large, particularly if video and audio media are used. Given that the journal "remembers" pages that have been navigated to, such an XBAP could quickly consume a large and noticeable amount of memory.

For this reason, the default behavior of the journal is to store xref:System.Windows.Controls.Page metadata in each journal entry rather than a reference to a xref:System.Windows.Controls.Page object. When a journal entry is navigated to, its xref:System.Windows.Controls.Page metadata is used to create a new instance of the specified xref:System.Windows.Controls.Page. As a consequence, each xref:System.Windows.Controls.Page that is navigated has the lifetime that is illustrated by the following figure.

Page lifetime

Although using the default journaling behavior can save on memory consumption, per-page rendering performance might be reduced; reinstantiating a xref:System.Windows.Controls.Page can be time-intensive, particularly if it has a lot of content. If you need to retain a xref:System.Windows.Controls.Page instance in the journal, you can draw on two techniques for doing so. First, you can programmatically navigate to a xref:System.Windows.Controls.Page object by calling the xref:System.Windows.Navigation.NavigationService.Navigate%2A?displayProperty=nameWithType method.

Second, you can specify that WPF retain an instance of a xref:System.Windows.Controls.Page in the journal by setting the xref:System.Windows.Controls.Page.KeepAlive%2A property to true (the default is false). As shown in the following example, you can set xref:System.Windows.Controls.Page.KeepAlive%2A declaratively in markup.

[!code-xamlNavigationOverviewSnippets#KeepAlivePageXAML]

The lifetime of a xref:System.Windows.Controls.Page that is kept alive is subtly different from one that is not. The first time a xref:System.Windows.Controls.Page that is kept alive is navigated to, it is instantiated just like a xref:System.Windows.Controls.Page that is not kept alive. However, because an instance of the xref:System.Windows.Controls.Page is retained in the journal, it is never instantiated again for as long as it remains in the journal. Consequently, if a xref:System.Windows.Controls.Page has initialization logic that needs to be called every time the xref:System.Windows.Controls.Page is navigated to, you should move it from the constructor into a handler for the xref:System.Windows.FrameworkElement.Loaded event. As shown in the following figure, the xref:System.Windows.FrameworkElement.Loaded and xref:System.Windows.FrameworkElement.Unloaded events are still raised each time a xref:System.Windows.Controls.Page is navigated to and from, respectively.

When the Loaded and Unloaded events are raised

When a xref:System.Windows.Controls.Page is not kept alive, you should not do either of the following:

  • Store a reference to it, or any part of it.

  • Register event handlers with events that are not implemented by it.

Doing either of these will create references that force the xref:System.Windows.Controls.Page to be retained in memory, even after it has been removed from the journal.

In general, you should prefer the default xref:System.Windows.Controls.Page behavior of not keeping a xref:System.Windows.Controls.Page alive. However, this has state implications that are discussed in the next section.

Retaining Content State with Navigation History

If a xref:System.Windows.Controls.Page is not kept alive, and it has controls that collect data from the user, what happens to the data if a user navigates away from and back to the xref:System.Windows.Controls.Page? From a user experience perspective, the user should expect to see the data they entered previously. Unfortunately, because a new instance of the xref:System.Windows.Controls.Page is created with each navigation, the controls that collected the data are reinstantiated and the data is lost.

Fortunately, the journal provides support for remembering data across xref:System.Windows.Controls.Page navigations, including control data. Specifically, the journal entry for each xref:System.Windows.Controls.Page acts as a temporary container for the associated xref:System.Windows.Controls.Page state. The following steps outline how this support is used when a xref:System.Windows.Controls.Page is navigated from:

  1. An entry for the current xref:System.Windows.Controls.Page is added to the journal.

  2. The state of the xref:System.Windows.Controls.Page is stored with the journal entry for that page, which is added to the back stack.

  3. The new xref:System.Windows.Controls.Page is navigated to.

When the page xref:System.Windows.Controls.Page is navigated back to, using the journal, the following steps take place:

  1. The xref:System.Windows.Controls.Page (the top journal entry on the back stack) is instantiated.

  2. The xref:System.Windows.Controls.Page is refreshed with the state that was stored with the journal entry for the xref:System.Windows.Controls.Page.

  3. The xref:System.Windows.Controls.Page is navigated back to.

WPF automatically uses this support when the following controls are used on a xref:System.Windows.Controls.Page:

If a xref:System.Windows.Controls.Page uses these controls, data entered into them is remembered across xref:System.Windows.Controls.Page navigations, as demonstrated by the Favorite Colorxref:System.Windows.Controls.ListBox in the following figure.

Page with controls that remember state

When a xref:System.Windows.Controls.Page has controls other than those in the preceding list, or when state is stored in custom objects, you need to write code to cause the journal to remember state across xref:System.Windows.Controls.Page navigations.

If you need to remember small pieces of state across xref:System.Windows.Controls.Page navigations, you can use dependency properties (see xref:System.Windows.DependencyProperty) that are configured with the xref:System.Windows.FrameworkPropertyMetadata.Journal%2A?displayProperty=nameWithType metadata flag.

If the state that your xref:System.Windows.Controls.Page needs to remember across navigations comprises multiple pieces of data, you may find it less code intensive to encapsulate your state in a single class and implement the xref:System.Windows.Navigation.IProvideCustomContentState interface.

If you need to navigate through various states of a single xref:System.Windows.Controls.Page, without navigating from the xref:System.Windows.Controls.Page itself, you can use xref:System.Windows.Navigation.IProvideCustomContentState and xref:System.Windows.Navigation.NavigationService.AddBackEntry%2A?displayProperty=nameWithType.

Cookies

Another way that WPF applications can store data is with cookies, which are created, updated, and deleted by using the xref:System.Windows.Application.SetCookie%2A and xref:System.Windows.Application.GetCookie%2A methods. The cookies that you can create in WPF are the same cookies that other types of Web applications use; cookies are arbitrary pieces of data that are stored by an application on a client machine either during or across application sessions. Cookie data typically takes the form of a name/value pair in the following format.

Name = Value

When the data is passed to xref:System.Windows.Application.SetCookie%2A, along with the xref:System.Uri of the location for which the cookie should be set, a cookie is created in-memory, and it is only available for the duration of the current application session. This type of cookie is referred to as a session cookie.

To store a cookie across application sessions, an expiration date must be added to the cookie, using the following format.

NAME = VALUE ; expires=DAY, DD-MMM-YYYY HH:MM:SS GMT

A cookie with an expiration date is stored in the current Windows installation's Temporary Internet Files folder until the cookie expires. Such a cookie is known as a persistent cookie because it persists across application sessions.

You retrieve both session and persistent cookies by calling the xref:System.Windows.Application.GetCookie%2A method, passing the xref:System.Uri of the location where the cookie was set with the xref:System.Windows.Application.SetCookie%2A method.

The following are some of the ways that cookies are supported in WPF:

  • WPF standalone applications and XBAPs can both create and manage cookies.

  • Cookies that are created by an XBAP can be accessed from the browser.

  • XBAPs from the same domain can create and share cookies.

  • XBAPs and HTML pages from the same domain can create and share cookies.

  • Cookies are dispatched when XBAPs and loose [!INCLUDETLA2#tla_xaml] pages make Web requests.

  • Both top-level XBAPs and XBAPs hosted in IFRAMES can access cookies.

  • Cookie support in WPF is the same for all supported browsers.

  • In Internet Explorer, P3P policy that pertains to cookies is honored by WPF, particularly with respect to first-party and third-party XBAPs.

Structured Navigation

If you need to pass data from one xref:System.Windows.Controls.Page to another, you can pass the data as arguments to a non-parameterless constructor of the xref:System.Windows.Controls.Page. Note that if you use this technique, you must keep the xref:System.Windows.Controls.Page alive; if not, the next time you navigate to the xref:System.Windows.Controls.Page, WPF reinstantiates the xref:System.Windows.Controls.Page by using the parameterless constructor.

Alternatively, your xref:System.Windows.Controls.Page can implement properties that are set with the data that needs to be passed. Things become tricky, however, when a xref:System.Windows.Controls.Page needs to pass data back to the xref:System.Windows.Controls.Page that navigated to it. The problem is that navigation doesn't natively support mechanisms for guaranteeing that a xref:System.Windows.Controls.Page will be returned to after it is navigated from. Essentially, navigation doesn't support call/return semantics. To solve this problem, WPF provides the xref:System.Windows.Navigation.PageFunction%601 class that you can use to ensure that a xref:System.Windows.Controls.Page is returned to in a predictable and structured fashion. For more information, see Structured Navigation Overview.

The NavigationWindow Class

To this point, you've seen the gamut of navigation services that you are most likely to use to build applications with navigable content. These services were discussed in the context of XBAPs, although they are not limited to XBAPs. Modern operating systems and Windows applications take advantage of the browser experience of modern users to incorporate browser-style navigation into standalone applications. Common examples include:

  • Word Thesaurus: Navigate word choices.

  • File Explorer: Navigate files and folders.

  • Wizards: Breaking down a complex task into multiple pages that can be navigated between. An example is the Windows Components Wizard that handles adding and removing Windows features.

To incorporate browser-style navigation into your standalone applications, you can use the xref:System.Windows.Navigation.NavigationWindow class. xref:System.Windows.Navigation.NavigationWindow derives from xref:System.Windows.Window and extends it with the same support for navigation that XBAPs provide. You can use xref:System.Windows.Navigation.NavigationWindow as either the main window of your standalone application or as a secondary window such as a dialog box.

To implement a xref:System.Windows.Navigation.NavigationWindow, as with most top-level classes in WPF (xref:System.Windows.Window, xref:System.Windows.Controls.Page, and so on), you use a combination of markup and code-behind. This is shown in the following example.

[!code-xamlIntroToNavNavigationWindowSnippets#NavigationWindowMARKUP]

[!code-csharpIntroToNavNavigationWindowSnippets#NavigationWindowCODEBEHIND] [!code-vbIntroToNavNavigationWindowSnippets#NavigationWindowCODEBEHIND]

This code creates a xref:System.Windows.Navigation.NavigationWindow that automatically navigates to a xref:System.Windows.Controls.Page (HomePage.xaml) when the xref:System.Windows.Navigation.NavigationWindow is opened. If the xref:System.Windows.Navigation.NavigationWindow is the main application window, you can use the StartupUri attribute to launch it. This is shown in the following markup.

[!code-xamlIntroToNavNavigationWindowSnippets#AppLaunchNavWindow]

The following figure shows the xref:System.Windows.Navigation.NavigationWindow as the main window of a standalone application.

A main window

From the figure, you can see that the xref:System.Windows.Navigation.NavigationWindow has a title, even though it wasn't set in the xref:System.Windows.Navigation.NavigationWindow implementation code from the preceding example. Instead, the title is set using the xref:System.Windows.Controls.Page.WindowTitle%2A property, which is shown in the following code.

[!code-xamlIntroToNavNavigationWindowSnippets#HomePageMARKUP1] [!code-xamlIntroToNavNavigationWindowSnippets#HomePageMARKUP2]

Setting the xref:System.Windows.Controls.Page.WindowWidth%2A and xref:System.Windows.Controls.Page.WindowHeight%2A properties also affects the xref:System.Windows.Navigation.NavigationWindow.

Usually, you implement your own xref:System.Windows.Navigation.NavigationWindow when you need to customize either its behavior or its appearance. If you do neither, you can use a shortcut. If you specify the pack URI of a xref:System.Windows.Controls.Page as the xref:System.Windows.Application.StartupUri%2A in a standalone application, xref:System.Windows.Application automatically creates a xref:System.Windows.Navigation.NavigationWindow to host the xref:System.Windows.Controls.Page. The following markup shows how to enable this.

[!code-xamlIntroToNavNavigationWindowSnippets#AppLaunchPage]

If you want a secondary application window such as a dialog box to be a xref:System.Windows.Navigation.NavigationWindow, you can use the code in the following example to open it.

[!code-csharpIntroToNavNavigationWindowSnippets#CreateNWDialogBox] [!code-vbIntroToNavNavigationWindowSnippets#CreateNWDialogBox]

The following figure shows the result.

A dialog box

As you can see, xref:System.Windows.Navigation.NavigationWindow displays Internet Explorer-style Back and Forward buttons that allow users to navigate the journal. These buttons provide the same user experience, as shown in the following figure.

Back and Forward buttons in a NavigationWindow

If your pages provide their own journal navigation support and UI, you can hide the Back and Forward buttons displayed by xref:System.Windows.Navigation.NavigationWindow by setting the value of the xref:System.Windows.Navigation.NavigationWindow.ShowsNavigationUI%2A property to false.

Alternatively, you can use customization support in WPF to replace the [!INCLUDETLA2#tla_ui] of the xref:System.Windows.Navigation.NavigationWindow itself.

The Frame Class

Both the browser and xref:System.Windows.Navigation.NavigationWindow are windows that host navigable content. In some cases, applications have content that does not need to be hosted by an entire window. Instead, such content be hosted inside other content. You can insert navigable content into other content by using the xref:System.Windows.Controls.Frame class. xref:System.Windows.Controls.Frame provides the same support as xref:System.Windows.Navigation.NavigationWindow and XBAPs.

The following example shows how to add a xref:System.Windows.Controls.Frame to a xref:System.Windows.Controls.Page declaratively by using the Frame element.

[!code-xamlNavigationOverviewSnippets#FrameHostPageXAML1] [!code-xamlNavigationOverviewSnippets#FrameHostPageXAML2] [!code-xamlNavigationOverviewSnippets#FrameHostPageXAML3]

This markup sets the Source attribute of the Frame element with a pack URI for the xref:System.Windows.Controls.Page that the xref:System.Windows.Controls.Frame should initially navigate to. The following figure shows an XBAP with a xref:System.Windows.Controls.Page that has a xref:System.Windows.Controls.Frame that has navigated between several pages.

A frame that has navigated between multiple pages

You don't only have to use xref:System.Windows.Controls.Frame inside the content of a xref:System.Windows.Controls.Page. It is also common to host a xref:System.Windows.Controls.Frame inside the content of a xref:System.Windows.Window.

By default, xref:System.Windows.Controls.Frame only uses its own journal in the absence of another journal. If a xref:System.Windows.Controls.Frame is part of content that is hosted inside either a xref:System.Windows.Navigation.NavigationWindow or an XBAP, xref:System.Windows.Controls.Frame uses the journal that belongs to the xref:System.Windows.Navigation.NavigationWindow or XBAP. Sometimes, though, a xref:System.Windows.Controls.Frame might need to be responsible for its own journal. One reason to do so is to allow journal navigation within the pages that are hosted by a xref:System.Windows.Controls.Frame. This is illustrated by the following figure.

Frame and Page diagram

In this case, you can configure the xref:System.Windows.Controls.Frame to use its own journal by setting the xref:System.Windows.Controls.Frame.JournalOwnership%2A property of the xref:System.Windows.Controls.Frame to xref:System.Windows.Navigation.JournalOwnership.OwnsJournal. This is shown in the following markup.

[!code-xamlNavigationOverviewSnippets#FrameHostPageOwnJournalXAML1] [!code-xamlNavigationOverviewSnippets#FrameHostPageOwnJournalXAML2] [!code-xamlNavigationOverviewSnippets#FrameHostPageOwnJournalXAML3]

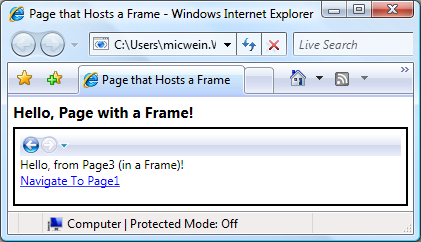

The following figure illustrates the effect of navigating within a xref:System.Windows.Controls.Frame that uses its own journal.

A frame that uses its own journal

Notice that the journal entries are shown by the navigation [!INCLUDETLA2#tla_ui] in the xref:System.Windows.Controls.Frame, rather than by Internet Explorer.

Note

If a xref:System.Windows.Controls.Frame is part of content that is hosted in a xref:System.Windows.Window, xref:System.Windows.Controls.Frame uses its own journal and, consequently, displays its own navigation [!INCLUDETLA2#tla_ui].

If your user experience requires a xref:System.Windows.Controls.Frame to provide its own journal without showing the navigation [!INCLUDETLA2#tla_ui], you can hide the navigation [!INCLUDETLA2#tla_ui] by setting the xref:System.Windows.Controls.Frame.NavigationUIVisibility%2A to xref:System.Windows.Visibility.Hidden. This is shown in the following markup.

[!code-xamlNavigationOverviewSnippets#FrameHostPageHidesUIXAML1] [!code-xamlNavigationOverviewSnippets#FrameHostPageHidesUIXAML2] [!code-xamlNavigationOverviewSnippets#FrameHostPageHidesUIXAML3]

Navigation Hosts

xref:System.Windows.Controls.Frame and xref:System.Windows.Navigation.NavigationWindow are classes that are known as navigation hosts. A navigation host is a class that can navigate to and display content. To accomplish this, each navigation host uses its own xref:System.Windows.Navigation.NavigationService and journal. The basic construction of a navigation host is shown in the following figure.

Navigator diagrams

Essentially, this allows xref:System.Windows.Navigation.NavigationWindow and xref:System.Windows.Controls.Frame to provide the same navigation support that an XBAP provides when hosted in the browser.

Besides using xref:System.Windows.Navigation.NavigationService and a journal, navigation hosts implement the same members that xref:System.Windows.Navigation.NavigationService implements. This is illustrated by the following figure.

A journal in a Frame and in a NavigationWindow

This allows you to program navigation support directly against them. You may consider this if you need to provide a custom navigation [!INCLUDETLA2#tla_ui] for a xref:System.Windows.Controls.Frame that is hosted in a xref:System.Windows.Window. Furthermore, both types implement additional, navigation-related members, including BackStack (xref:System.Windows.Navigation.NavigationWindow.BackStack%2A?displayProperty=nameWithType, xref:System.Windows.Controls.Frame.BackStack%2A?displayProperty=nameWithType) and ForwardStack (xref:System.Windows.Navigation.NavigationWindow.ForwardStack%2A?displayProperty=nameWithType, xref:System.Windows.Controls.Frame.ForwardStack%2A?displayProperty=nameWithType), which allow you to enumerate the journal entries in the back stack and forward stack, respectively.

As mentioned earlier, more than one journal can exist within an application. The following figure provides an example of when this can happen.

Multiple journals within one application

Navigating to Content Other than XAML Pages

Throughout this topic, xref:System.Windows.Controls.Page and pack XBAPs have been used to demonstrate the various navigation capabilities of WPF. However, a xref:System.Windows.Controls.Page that is compiled into an application is not the only type of content that can be navigated to, and pack XBAPs aren't the only way to identify content.

As this section demonstrates, you can also navigate to loose [!INCLUDETLA2#tla_xaml] files, HTML files, and objects.

Navigating to Loose XAML Files

A loose [!INCLUDETLA2#tla_xaml] file is a file with the following characteristics:

  • Contains only [!INCLUDETLA2#tla_xaml] (that is, no code).

  • Has an appropriate namespace declaration.

  • Has the .xaml file name extension.

For example, consider the following content that is stored as a loose [!INCLUDETLA2#tla_xaml] file, Person.xaml.

[!code-xamlNavigationOverviewSnippets#LooseXAML]

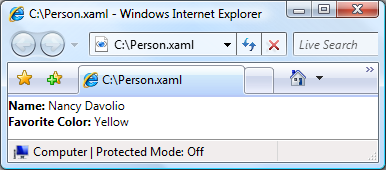

When you double-click the file, the browser opens and navigates to and displays the content. This is shown in the following figure.

Display of the content in the Person.XAML file

You can display a loose [!INCLUDETLA2#tla_xaml] file from the following:

  • A Web site on the local machine, the intranet, or the Internet.

  • A Universal Naming Convention (UNC) file share.

  • The local disk.

A loose [!INCLUDETLA2#tla_xaml] file can be added to the browser's favorites, or be the browser's home page.

Note

For more information about publishing and launching loose [!INCLUDETLA2#tla_xaml] pages, see Deploying a WPF Application.

One limitation with respect to loose [!INCLUDETLA2#tla_xaml] is that you can only host content that is safe to run in partial trust. For example, Window cannot be the root element of a loose [!INCLUDETLA2#tla_xaml] file. For more information, see WPF Partial Trust Security.

Navigating to HTML Files by Using Frame

As you might expect, you can also navigate to HTML. You simply need to provide a URI that uses the http scheme. For example, the following [!INCLUDETLA2#tla_xaml] shows a xref:System.Windows.Controls.Frame that navigates to an HTML page.

[!code-xamlNavigationOverviewSnippets#FrameHtmlNavMARKUP]

Navigating to HTML requires special permissions. For example, you can't navigate from an XBAP that is running in the Internet zone partial trust security sandbox. For more information, see WPF Partial Trust Security.

Navigating to HTML Files by Using the WebBrowser Control

The xref:System.Windows.Controls.WebBrowser control supports HTML document hosting, navigation and script/managed code interoperability. For detailed information regarding the xref:System.Windows.Controls.WebBrowser control, see xref:System.Windows.Controls.WebBrowser.

Like xref:System.Windows.Controls.Frame, navigating to HTML using xref:System.Windows.Controls.WebBrowser requires special permissions. For example, from a partial-trust application, you can navigate only to HTML located at the site of origin. For more information, see WPF Partial Trust Security.

Navigating to Custom Objects

If you have data that is stored as custom objects, one way to display that data is to create a xref:System.Windows.Controls.Page with content that is bound to those objects (see Data Binding Overview). If you don't need the overhead of creating an entire page just to display the objects, you can navigate directly to them instead.

Consider the Person class that is implemented in the following code.

[!code-csharpNavigateToObjectSnippets#PersonClassCODE] [!code-vbNavigateToObjectSnippets#PersonClassCODE]

To navigate to it, you call the xref:System.Windows.Navigation.NavigationWindow.Navigate%2A?displayProperty=nameWithType method, as demonstrated by the following code.

[!code-xamlNavigateToObjectSnippets#PageThatNavsToObject1] [!code-xamlNavigateToObjectSnippets#PageThatNavsToObject2] [!code-xamlNavigateToObjectSnippets#PageThatNavsToObject3]

[!code-csharpNavigateToObjectSnippets#PageThatNavsToObjectCODEBEHIND] [!code-vbNavigateToObjectSnippets#PageThatNavsToObjectCODEBEHIND]

The following figure shows the result.

A page that navigates to a class

From this figure, you can see that nothing useful is displayed. In fact, the value that is displayed is the return value of the ToString method for the Person object; by default, this is the only value that WPF can use to represent your object. You could override the ToString method to return more meaningful information, although it will still only be a string value. One technique you can use that takes advantage of the presentation capabilities of WPF is to use a data template. You can implement a data template that WPF can associate with an object of a particular type. The following code shows a data template for the Person object.

[!code-xamlNavigateToObjectSnippets#DataTemplateMARKUP]

Here, the data template is associated with the Person type by using the x:Type markup extension in the DataType attribute. The data template then binds TextBlock elements (see xref:System.Windows.Controls.TextBlock) to the properties of the Person class. The following figure shows the updated appearance of the Person object.

Navigating to a class that has a data template

An advantage of this technique is the consistency you gain by being able to reuse the data template to display your objects consistently anywhere in your application.

For more information on data templates, see Data Templating Overview.

Security

WPF navigation support allows XBAPs to be navigated to across the Internet, and it allows applications to host third-party content. To protect both applications and users from harmful behavior, WPF provides a variety of security features that are discussed in Security and WPF Partial Trust Security.

See also

Reference in New Issue View Git Blame Copy Permalink
