How to: Create a Grid Element
Example
The following example shows how to create and use an instance of xref:System.Windows.Controls.Grid by using either [!INCLUDETLA#tla_xaml] or code. This example uses three xref:System.Windows.Controls.ColumnDefinition objects and three xref:System.Windows.Controls.RowDefinition objects to create a grid that has nine cells, such as in a worksheet. Each cell contains a xref:System.Windows.Controls.TextBlock element that represents data, and the top row contains a xref:System.Windows.Controls.TextBlock with the xref:System.Windows.Controls.Grid.ColumnSpan%2A property applied. To show the boundaries of each cell, the xref:System.Windows.Controls.Grid.ShowGridLines%2A property is enabled.
[!code-csharpGrid#3] [!code-vbGrid#3] [!code-xamlGrid#3]

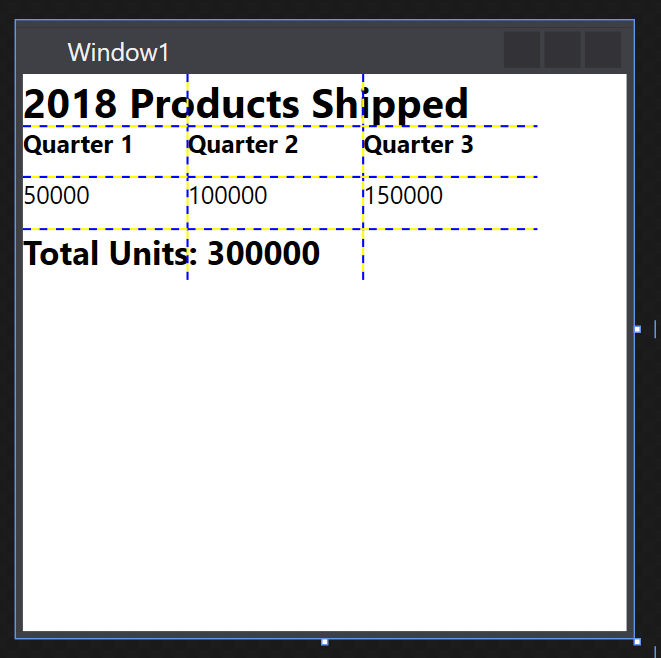

Either approach will generate a user interface that looks much the same, like the one below.
