TileBrush Overview
xref:System.Windows.Media.TileBrush objects provide you with a great deal of control over how an area is painted with an image, xref:System.Windows.Media.Drawing, or xref:System.Windows.Media.Visual. This topic describes how to use xref:System.Windows.Media.TileBrush features to gain more control over how an xref:System.Windows.Media.ImageBrush, xref:System.Windows.Media.DrawingBrush, or xref:System.Windows.Media.VisualBrush paints an area.
Prerequisites
To understand this topic, it's helpful to understand how to use the basic features of the xref:System.Windows.Media.ImageBrush, xref:System.Windows.Media.DrawingBrush, or xref:System.Windows.Media.VisualBrush class. For an introduction to these types, see the Painting with Images, Drawings, and Visuals.
Painting an Area with Tiles
xref:System.Windows.Media.ImageBrush, xref:System.Windows.Media.DrawingBrush, are xref:System.Windows.Media.VisualBrush are types of xref:System.Windows.Media.TileBrush objects. Tile brushes provide you with a great deal of control over how an area is painted with an image, drawing, or visual. For example, instead of just painting an area with a single stretched image, you can paint an area with a series of image tiles that create a pattern.
Painting an area with a tile brush involves three components: content, the base tile, and the output area.

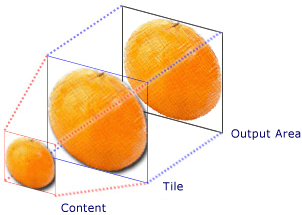

Components of a TileBrush with a single tile
Components of a TileBrush with a TileMode of Tile
The output area is the area being painted, such as the xref:System.Windows.Shapes.Shape.Fill%2A of an xref:System.Windows.Shapes.Ellipse or the xref:System.Windows.Controls.Control.Background%2A of a xref:System.Windows.Controls.Button. The next sections describe the other two components of a xref:System.Windows.Media.TileBrush.
Brush Content
There are three different types of xref:System.Windows.Media.TileBrush and each paints with a different type of content.
-
If the brush is an xref:System.Windows.Media.ImageBrush, this content is an image The xref:System.Windows.Media.ImageBrush.ImageSource%2A property specifies the contents of the xref:System.Windows.Media.ImageBrush.
-
If the brush is a xref:System.Windows.Media.DrawingBrush, this content is a drawing. The xref:System.Windows.Media.DrawingBrush.Drawing%2A property specifies the contents of the xref:System.Windows.Media.DrawingBrush.
-
If the brush is a xref:System.Windows.Media.VisualBrush, this content is a visual. The xref:System.Windows.Media.VisualBrush.Visual%2A property specifies the content of the xref:System.Windows.Media.VisualBrush.
You can specify the position and dimensions of xref:System.Windows.Media.TileBrush content by using the xref:System.Windows.Media.TileBrush.Viewbox%2A property, although it is common to leave the xref:System.Windows.Media.TileBrush.Viewbox%2A set to its default value. By default, the xref:System.Windows.Media.TileBrush.Viewbox%2A is configured to completely contain the brush's contents. For more information about configuring the xref:System.Windows.Controls.Viewbox, see the xref:System.Windows.Controls.Viewbox property page.
The Base Tile
A xref:System.Windows.Media.TileBrush projects its content onto a base tile. The xref:System.Windows.Media.TileBrush.Stretch%2A property controls how xref:System.Windows.Media.TileBrush content is stretched to fill the base tile. The xref:System.Windows.Media.TileBrush.Stretch%2A property accepts the following values, defined by the xref:System.Windows.Media.Stretch enumeration:
-
xref:System.Windows.Media.Stretch.None: The brush's content is not stretched to fill the tile.
-
xref:System.Windows.Media.Stretch.Fill: The brush's content is scaled to fit the tile. Because the content's height and width are scaled independently, the original aspect ratio of the content might not be preserved. That is, the brush's content might be warped in order to completely fill the output tile.
-
xref:System.Windows.Media.Stretch.Uniform: The brush's content is scaled so that it fits completely within the tile. The content's aspect ratio is preserved.
-
xref:System.Windows.Media.Stretch.UniformToFill: The brush's content is scaled so that it completely fills the output area while preserving the content's original aspect ratio.
The following image illustrates the different xref:System.Windows.Media.TileBrush.Stretch%2A settings.
In the following example, the content of an xref:System.Windows.Media.ImageBrush is set so that it does not stretch to fill the output area.
[!code-xamlBrushOverviewExamples_snip#GraphicsMMNoStretchExample]
[!code-csharpBrushOverviewExamples_procedural_snip#GraphicsMMNoStretchExample] [!code-vbBrushOverviewExamples_procedural_snip#GraphicsMMNoStretchExample]
By default, a xref:System.Windows.Media.TileBrush generates a single tile (the base tile) and stretches that tile to completely fill the output area. You can change the size and position of the base tile by setting the xref:System.Windows.Media.TileBrush.Viewport%2A and xref:System.Windows.Media.TileBrush.ViewportUnits%2A properties.
Base Tile Size
The xref:System.Windows.Media.TileBrush.Viewport%2A property determines the size and position of the base tile, and the xref:System.Windows.Media.TileBrush.ViewportUnits%2A property determines whether the xref:System.Windows.Media.TileBrush.Viewport%2A is specified using absolute or relative coordinates. If the coordinates are relative, they are relative to the size of the output area. The point (0,0) represents the top left corner of the output area, and (1,1) represents the bottom right corner of the output area. To specify that the xref:System.Windows.Media.TileBrush.Viewport%2A property uses absolute coordinates, set the xref:System.Windows.Media.TileBrush.ViewportUnits%2A property to xref:System.Windows.Media.BrushMappingMode.Absolute.
The following illustration shows the difference in output between a xref:System.Windows.Media.TileBrush with relative versus absolute xref:System.Windows.Media.TileBrush.ViewportUnits%2A. Notice that the illustrations each show a tiled pattern; the next section describes how to specify tile pattern.
In the following example, an image is used to create a tile that has a width and height of 50%. The base tile is located at (0,0) of the output area.
[!code-xamlBrushOverviewExamples_snip#GraphicsMMRelativeViewportUnitsExample1]
[!code-csharpBrushOverviewExamples_procedural_snip#GraphicsMMRelativeViewportUnitsExample1] [!code-vbBrushOverviewExamples_procedural_snip#GraphicsMMRelativeViewportUnitsExample1]
The next example sets the tiles of an xref:System.Windows.Media.ImageBrush to 25 by 25 device independent pixels. Because the xref:System.Windows.Media.TileBrush.ViewportUnits%2A are absolute, the xref:System.Windows.Media.ImageBrush tiles are always 25 by 25 pixels, regardless of the size of the area being painted.
[!code-xamlBrushOverviewExamples_snip#GraphicsMMAbsoluteViewportUnitsExample1]
[!code-csharpBrushOverviewExamples_procedural_snip#GraphicsMMAbsoluteViewportUnitsExample1] [!code-vbBrushOverviewExamples_procedural_snip#GraphicsMMAbsoluteViewportUnitsExample1]
Tiling Behavior
A xref:System.Windows.Media.TileBrush produces a tiled pattern when its base tile does not completely fill the output area and a tiling mode other then xref:System.Windows.Media.TileMode.None is specified. When a tile brush's tile does not completely fill the output area, its xref:System.Windows.Media.TileBrush.TileMode%2A property specifies whether the base tile should be duplicated to fill the output area and, if so, how the base tile should be duplicated. The xref:System.Windows.Media.TileBrush.TileMode%2A property accepts the following values, defined by the xref:System.Windows.Media.TileMode enumeration:
-
xref:System.Windows.Media.TileMode.None: Only the base tile is drawn.
-
xref:System.Windows.Media.TileMode.Tile: The base tile is drawn and the remaining area is filled by repeating the base tile such that the right edge of one tile is adjacent to the left edge of the next, and similarly for bottom and top.
-
xref:System.Windows.Media.TileMode.FlipX: The same as xref:System.Windows.Media.TileMode.Tile, but alternate columns of tiles are flipped horizontally.
-
xref:System.Windows.Media.TileMode.FlipY: The same as xref:System.Windows.Media.TileMode.Tile, but alternate rows of tiles are flipped vertically.
-
xref:System.Windows.Media.TileMode.FlipXY: A combination of xref:System.Windows.Media.TileMode.FlipX and xref:System.Windows.Media.TileMode.FlipY.
The following image illustrates the different tiling modes.
In the following example, an image is used to paint a rectangle that is 100 pixels wide and 100 pixels tall. By setting the brush's xref:System.Windows.Media.TileBrush.Viewport%2A has been set to 0,0,0.25,0.25, the brush's base tile is made to be 1/4 of the output area. The brush's xref:System.Windows.Media.TileBrush.TileMode%2A is set to xref:System.Windows.Media.TileMode.FlipXY. so that it fills the rectangle with rows of tiles.
[!code-xamlBrushOverviewExamples_snip#GraphicsMMFlipXYExample]
[!code-csharpBrushOverviewExamples_procedural_snip#GraphicsMMFlipXYExample] [!code-vbBrushOverviewExamples_procedural_snip#GraphicsMMFlipXYExample]
